USD$111.57

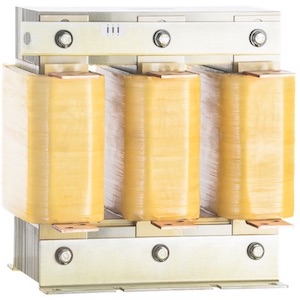

Product Description: 480V, 3% Impedance, Line & Load Reactors, 3Phase, 11Amps, 7.5HP, 2.200mH, 60Hz
3 Can Ship Immediately
| Shipping Weight | 10 lbs |
|---|---|
| Shipping Dimensions | 8 × 6 × 7 in |
| Category | Variable Frequency Drive Peripherals |
| Mfg SKU | ACL43-0011 |
| Brand | Mangoldt |
| Motor Rating (Voltage) | 460/480V |
| Phase | 3 |
| Motor Power (Horsepower) | 7.5HP |
| Motor Current (Max. Amps) | 11 Amps |
| Impedance | 3% |
| Inductance (MilliHenries) | 2.200 mH |
| Losses (Watts) | 40 |
| Frequency | 60Hz |
| Agency Approvals | cULus Listed |
| Product Dimensions: H x W x D (mm) | 130 MM x 120 MM x 74 MM |
| Product Weight (kg) | 4.2 KG |
| Product Dimensions: H x W x D (in) | 5.12 IN x 4.72 IN x 2.91 IN |
| Product Weight (lbs) | 9.26 LBS |
Product Description: 480V, 5% Impedance, Line & Load Reactors, 3Phase, 8Amps, 5HP, 4.900mH, 60Hz
Product Description: 600V, 3% Impedance, Line & Load Reactors, 3Phase, 3Amps, 2HP, 10.000mH, 60Hz
Product Description: 480V, 5% Impedance, Line & Load Reactors, 3Phase, 40Amps, 30HP, 0.960mH, 60Hz
Product Description: 480V, 5% Impedance, Line & Load Reactors, 3Phase, 11Amps, 7.5HP, 3.500mH, 60Hz
